D-Anschlussbolzen
-
Edelstahl - A2 / AISI304

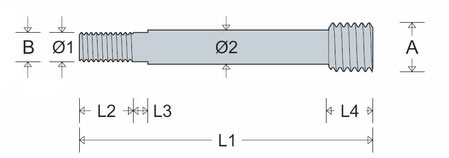

| Artikel | A | B | Ø1 | Ø2 | L1 | L2 | L3 | L4 |
| BO8645 | M8 | M6 |
- |
6,0 | 45 | 7,5 | 0 | 8,5 |
| BO8685 | M8 | M6 |
- |
6,0 | 85 | 11,0 | 0 | 8,5 |
| BO8699 | M8 | M6 |
- |
6,0 | 100 | 11,0 | 0 | 8,5 |
| BO10ax50 | M10 | WD | - | 7,5 | 51 | 0 | 0 | 9,5 |
| BO10651 | M10 | M6 | 6,4 | 7,0 | 51 | 8,0 | 7,5 | 9,5 |
| BO10660 | M10 | M6 | 6,0 | 7,0 | 60 | 11,0 | 3,0 | 9,5 |
| BO10860 | M10 | M8 | - | 8,0 | 60 | 9,0 | 0 | 9,5 |
| BO10685 | M10 | M6 | 6,0 | 7,0 | 85 | 11,0 | 4,0 | 9,5 |
| BO10699 | M10 | M6 | 6,0 | 7,0 | 100 | 11,0 | 4,0 | 9,5 |
